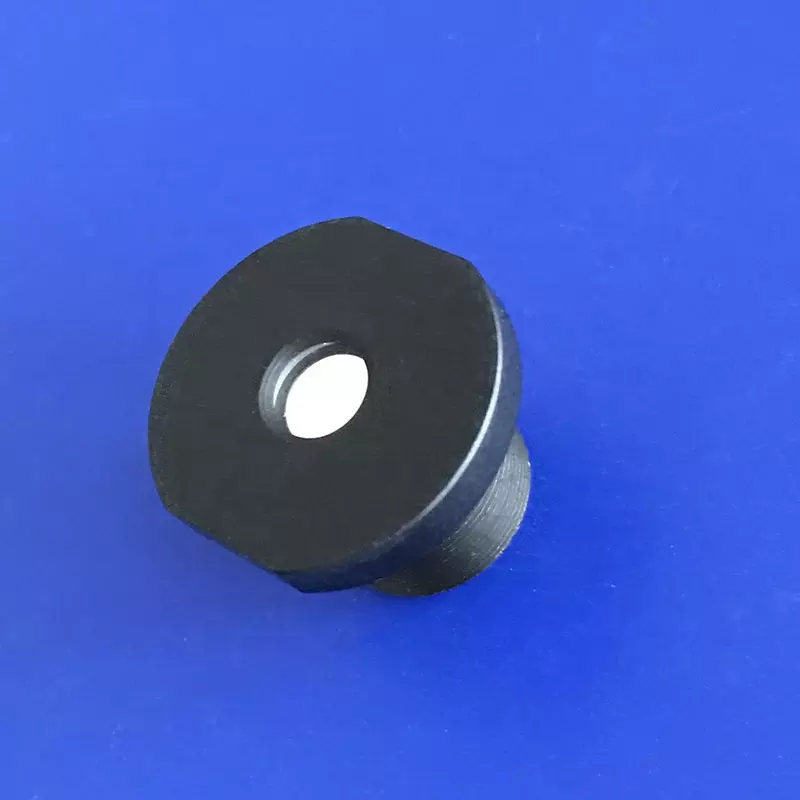

High Resolution cctv lens Focusafe 5MP 12mm Low distortion M12 Board Lens for Scan Camera

The S-mount lens connection is a standard connection for small mini lenses that can be installed directly on the circuit board of the sensor of industrial cameras with the help of a lens holder. Because of this, the lenses are often referred to as board lenses. Typically, a male M12 metric thread with a pitch of 0.5mm is used on the lens. The supported sensor formats range from the smallest 1/6-inch type to the largest 2/3-inch type with 11 mm sensor diagonal. The lens mount is usually made of plastic and the lenses usually don't have an aperture control. S-mount lenses don't have a flange, so there's no fixed distance between the lens and sensor, so they need to be adjusted to focus. The M12 lenses are used in a wide variety of applications in industrial image processing (machine vision) and beyond. With us you will find a large selection of different types such as macro lenses, telephoto lenses and fisheye lenses with S-mount lens connection and accessories such as lens holders, lock rings and adapters.

Specification

Materials	Metal+Glass
Total Track length21	21mm
Focal length	14.5mm
Distortion	<2%
Coating	T>99.8@850nm+/-20nm
Damage Threshold	50J/C㎡
Screw Thread	M12*0.5-6g
Application area	Lighting,Laser etc

Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai.

Business scope:

optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields:

machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.

Certifications

Exhibition

Packing & Delivery

FAQ

Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q: What's your MOQ?
A: 10pcs.

Q: What's your leadtime?

A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
